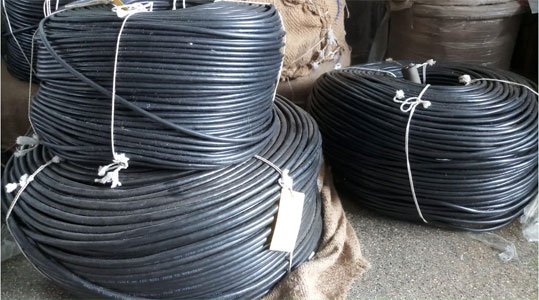

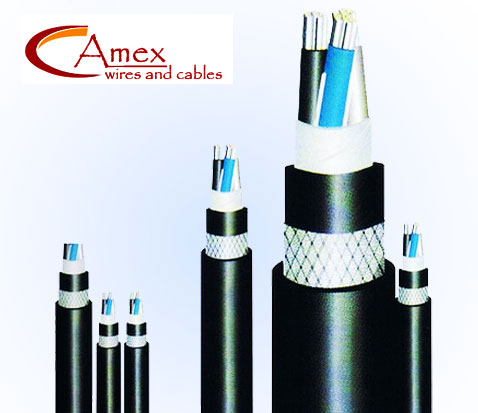

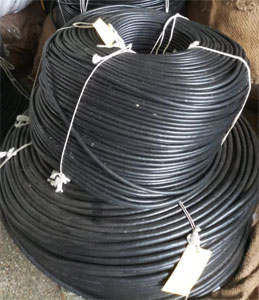

Shielded Flexible Cable



Product Description

Shielded cables Range: 2 Core to 61 Core, 1 Pair to 24 Pair, Size: 0.5 to 2.5 Sq mm & 2, 3 & 4 Core in Sizes 4 to 6 Sq mm.

We supply different types of Shielded Cables

Shielded with Aluminium Mylar tape & Drain wire which are also called Foiled Shielded Cables.

Shielded with Aluminium Mylar tape & Drain wire along with Tinned copper braiding for 100 % Coverage.

Shielded Cables with Tinned Copper Braiding (ATC).

Types of Shielded Cables to be used depend upon RFI/EMI Interference.



Application:

These Cables are applied for the signal transmission purpose in industrial application. The use of shielded Cables in security systems provides protection from power frequency and radio frequency interference. Shielded Cables are used basically for indoor application with it’s extreme flexibility for electronics control systems of computer, audio/ communication system, electronic circuits, measurement devices, machine design etc. Screening is used to reduce the effects of electromagnetic interference (EMI) or electrical noise which can disrupt the transmission performance in some environments.

Flexible Bare/ Tinned Copper Conductor, PVC Insulated, Cross Laid up/ Paired Overall Aluminium Mylar Tape Shielded along with ATC Drain Wire PVC/ FRLS Outer Sheathed shielded Cables 300/ 500 Volts.

Armoured Version also available in stock.

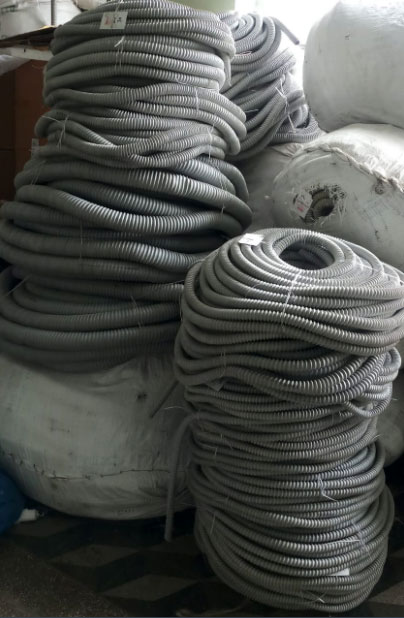

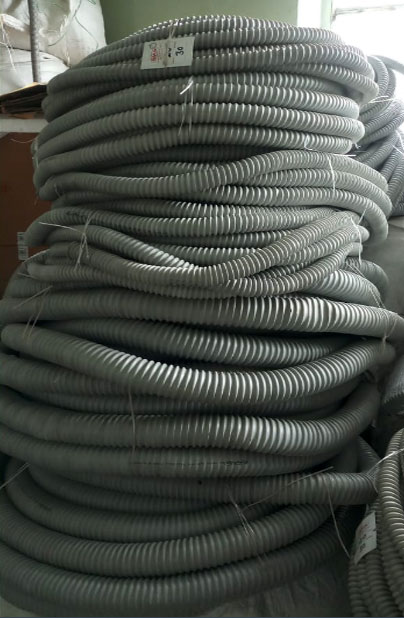

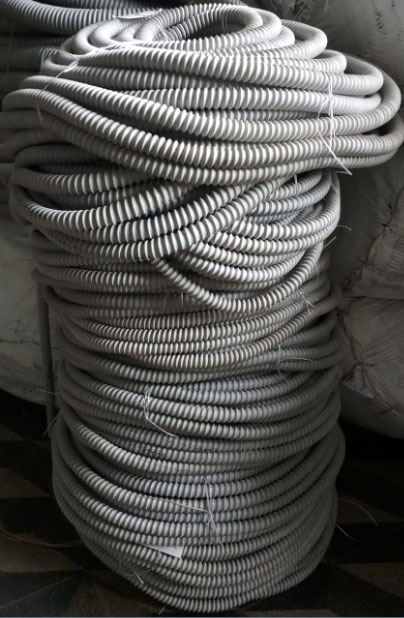

Steel Rein Forced PVC Flexible Conduit



By introducing high tensile spring steel wire for reinforcement which gives very strong crushing resistance, the hoses become ideal for use for conducting electrical wiring, suctions, ducting and exhaust of fume gases and for other industrial uses ideally suited for electrical wire conducting, connecting switch boards, bus-bars, switch gears and panels. Excellent flexibility and can be bent on its own axis. Useful for connection of wiring when the hoses are required to be roughly handled. Most ideally suited for making connection in machine tools.

At present the manufacturing range includes hoses type RT-10 to RT-200. Other types in the range will be included progressively at a later date.

High Tensile PVC covered steel wire hose are thin walled and light in weight and are very flexible for industrial purposes. Sizes produced are 10 mm ID to 200 mm ID.



TECHNICAL INFORMATION

Construction Details

Rolytube hoses have a reinforcement of PVC insulated high carbon grade II spring steel wires from 200 Uts Kg/mm2 to 220 UtsKg/mm2 (United Tensile Strength). Also available in high grade III for heavy duty pipes.



Super Flexibility

Rolytube is a highly flexible and will flex on it own diameter without deformation or any reduction in its cross section. This special feature reduces installation time in the most unapproachable area of application.



Temperature Resistance

Rolytube normal hoses can withstand a temperature from 150C to 600C and are inherently flame retardant. However hoses can be supplied on special request with heat resistant PVC which can withstand temperatures from -300C to 1050C.



Electrical Resistance

Rolytube hoses have excellent dielectric properties. There is no danger of short circuit taking place due to steel wire, as it is fully insulated with pvc. There are no other harmful effects due to spring steel wire, when used near panels. Infact, it is a kind of an armoring and protects the cable inside.



Self Extinguishing

Rolytube hoses does not propagate fire. It is self-extinguishing. The hose will cease to burn as soon as direct source of flame is removed.



Chemical Resistance

Rolytube hoses resist most chemicals, acids, alkalis, greases, petrol, etc. They are waterproof and suitable for application in damp environments.



Mechanical Resistance

Rolytube hoses have very high crush resistance for development of "kinks" and excellent shockproof properties due to the spring steel wire reinforcement.



Characteristics

• It will not "KINK".
• Light in weight.
• Resistant to most Alkalis and Acids.
• Easy to fix.
• No corrosion.
• No paint required.
• Dust proof, Water proof (Low pressure).
• Good mechanical strength.
• Can be bent on its own axis.
• Wide range with fittings.
• Durable.



Applications

• Machinery tool wiring conduits.
• Dust collectors for vacuum cleaners.
• Air ducting for low temperature.
• Gas or fume (Low temperature) removal.
• Low pressure air intakes.
• Electrical conducting for boards and panels.
• Hospital cleaning equipment.
• Shrouds for railway coach wiring.
• Rags collector hoses for industry machinery
• Dust intakes for wood machinery.



Sizes

Sr. No.	Cat No.	Inner Dia of Hose (mm)	Standard Pkgs. (mtrs)	Colour
1	RT 10	10	20 & above	Grey but other colours like Red, Blue, Blackcan be made on quantity order.
2	RT 15	15	20 & above
3	RT 20	20	20 & above
4	RT 25	25	20 & above
5	RT 30	30	20 & above
6	RT 40	40	20 & above
7	RT 50	50	20 & above
8	RT 60	60	20 & above
9	RT 75	75	5 & above
10	RT 100	100	5 & above
11	RT125	125	5 & above
12	RT 150	150	5 & above
13	RT 175	175	5 & above
14	RT 200	200	5 & above
